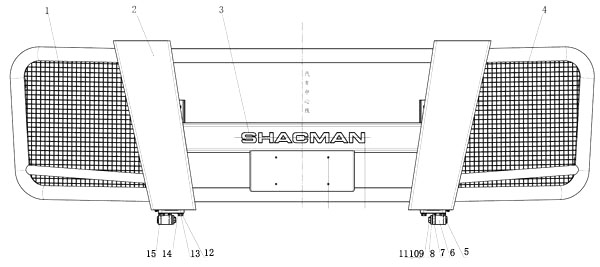

DC97189630002
1、DZ97189630024 右大燈護罩 Right headlight cover 1Pcs
2、DZ97189630010 前圍防護焊接總成 Front panel protection welding assembly 1Pcs
3、DZ15221952003 SHACMAN 標牌(20款M3000) SHACMAN signage (20 Model M3000) 1Pcs
4、DZ97189630023 左大燈護罩 Left headlight cover 1Pcs
5、JZ97319630036 銷軸 Hinge pin 2Pcs
6、DZ97189630030 安裝支座 Erection support 2Pcs
7、DZ97189630031 左側翻轉支座 Left flip support 1Pcs
8、JZ97319630037 擋圈(一) Retaining Ring (1) 2Pcs
9、Q150B1030T1F3 六角頭螺栓 Hexagon head bolt 2Pcs
10、Q401B10 平墊圈(鍍鋅) Flat gasket (galvanized) 4Pcs
11、Q40310 彈簧墊圈 Spring washer 4Pcs
12、Q401B12 平墊圈(鍍鋅) Flat gasket (galvanized) 16Pcs
13、Q40312 彈簧墊圈 Spring washer 8Pcs
14、Q151C1240T1F3 六角頭螺栓-細牙 Hexagon head bolt - fine thread 8Pcs
15、DZ97189630032 右側翻轉支座 Right flip support 1Pcs
16、Q151C12110T1F3 六角頭螺栓-細牙 Hexagon head bolt - fine thread 4Pcs
17、190003888457 自鎖螺母M12x15-8-ZN D980 Caulking nut 8Pcs
18、Q151C12120 六角頭螺栓-細牙 Hexagon head bolt - fine thread 2Pcs
19、Q150B0614 六角頭螺栓(鍍鋅) Hexagonal head bolt (galvanized) 4Pcs
20、JZ97319630045 銷鏈總成 Pin chain assembly 2Pcs
21、Q2140410F60 十字槽沉頭螺釘 Cross groove countersunk screw 16Pcs
22、DZ97189630026 翻轉機構右安裝座 The right mounting seat of the flipping mechanism 1Pcs
23、JZ97319630038 擋圈(二) Retaining Ring (2) 2Pcs
24、JZ97319630040 鎖鏈總成 Chain assembly 2Pcs
25、DZ97189630025 翻轉機構左安裝座 Left mounting seat of the flipping mechanism 1Pcs
26、Q1840860T1F3 六角法蘭面螺栓 Hexagonal flange face bolts 4Pcs
27、DZ97189630040 螺母板 Nut plate 2Pcs
28、DZ15221434121緩沖塊 Buffer block 2Pcs
29、Q340B10T2F31型六角螺母 Hexagonal nut type 2Pcs
30、Q32008 六角法蘭面螺母(鍍鋅) Hexagonal flange nut (galvanized) 4Pcs
