1. Hub bearing is one of the key parts of an automobile. Its main role is to carry weight and provide accurate guidance for the rotation of the hub, which requires that it can withstand not only axial loads but also radial loads.
2. Hub bearing unit is developed on the basis of standard angular contact ball bearing and tapered roller bearing. The two sets of bearings are integrated as a whole, with good assembly performance, which can omit clearance adjustment, light weight, compact structure and large load capacity.
| 1 | 168000340016 | Adjust the gasket |
| 2 | DZ91129320007 | The shaft head nut |
| 3 | 188000420022 | baffle |
| 4 | 188000420003 | Round the sun |
| 5 | 188000440010 | Additional gaskets |
| 6 | 190003933300 | An elastic retainer for the shaft |
| 9 | 1160-2400062 | Cylindrical pin 190003901704 |
| 10 | 188000420012 | O-ring seal |
| 11 | 199100420003 | Drive flange Assembly |
| PF19910042000301 | Round edge assembly | |
| 12 | DZ9112340214 | End cover |
| 13 | DZ9112346116 | Hexagonal plug with cylindrical head |
| 14 | 190003802511 | Hexagon head bolt Q150B1018 |
| 16 | 190003825513 | Ten grooved disc head screws Q2541020 |
| 17 | 199012340075 | Planetary wheel gasket |
| 18 | 199000420050 | Planetary wheel (Z=16) |
| 19 | 1-99-934-013 | Needle roller bearing |
| 20 | 188000420024 | The planets wheel |
| 21 | 190003330148 | Steel ball 8.0 |
| 22 | Q151C1265TF2 | Hex head bolts - fine teeth |
| 23 | 188000410069 | Needle roller bearing NK55/35 |
| 24 | 190003936071 | circlip Q43870 |
| 25 | 190003078556 | Shaft seal |
| 27 | 188000410102 | Locking pin |
| 28 | 188000410109 | tube |
| 29 | DZ9100410063 | Shaft head (left) |
| DZ9100410064 | Shaft head (right) | |
| 30 | 140600060011 | O-ring seal |
| 31 | 188000420028 | Every ring |
| 32 | 2190-3103023 | Shaft seal |

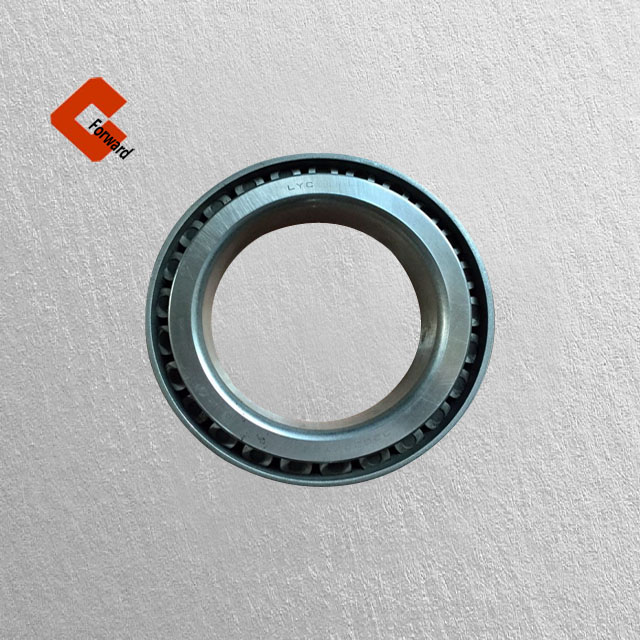

| 33 | 190003326443 | Tapered roller bearing 32020 |
| 34 | 199000410103 | Wheel bolt |
| 35 | DZ9100420029 | Front wheel hub |
| 36 | 190003884160 | Wheel nut |

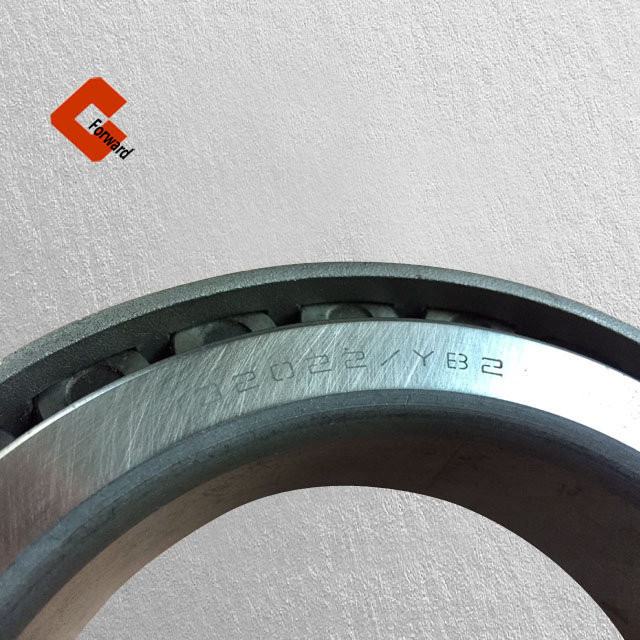

| 37 | 190003326445 | Tapered roller bearing32022 |
| 38 | 188000420014 | Retaining ring |
| 39 | 199000420049 | The ring gear |
| 40 | 199112340021 | Gear ring support assembly |
| 41 | 188000420030 | Bearing washer |
| 42 | 188000420034 | Thrust pad ring |
| 43 | 168000340015 | Thrust lock plate |
