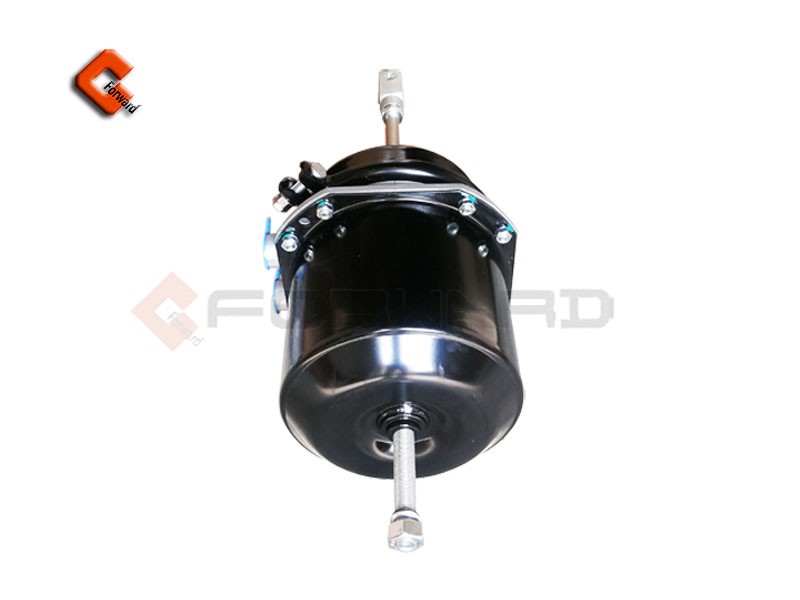

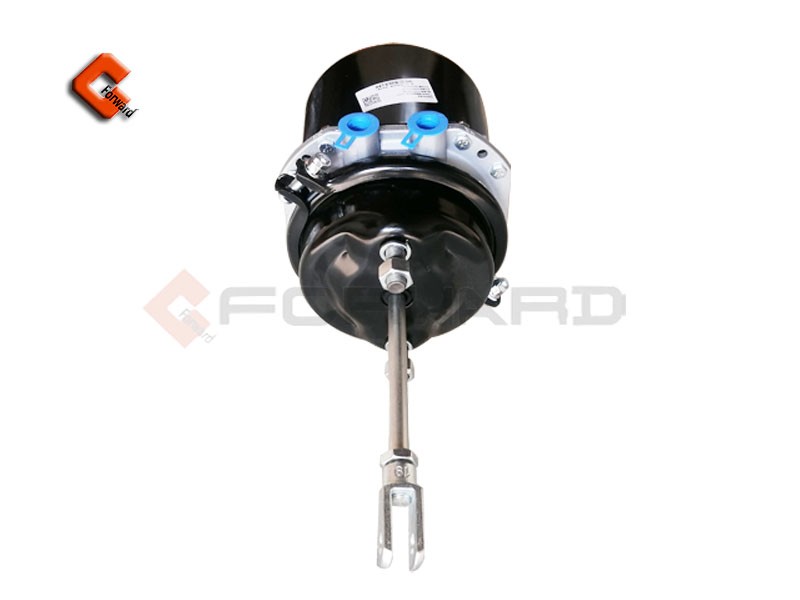

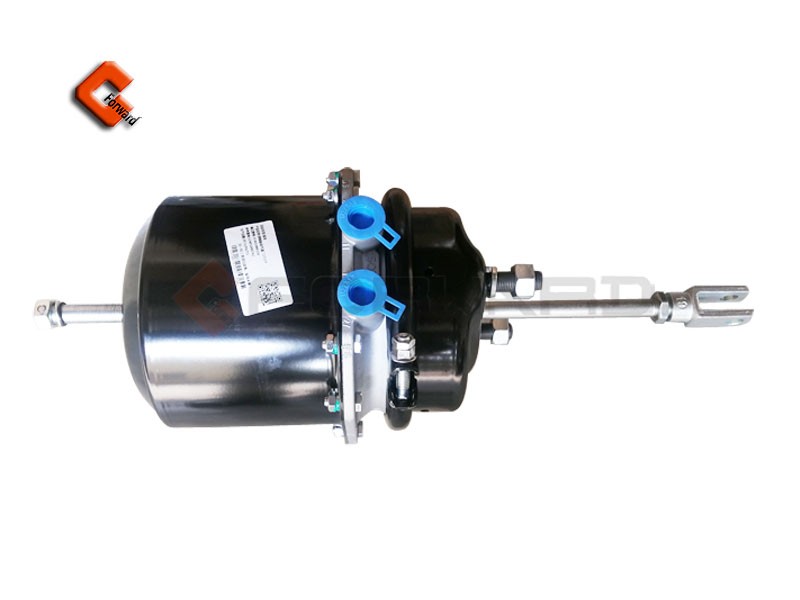

SZ905000742 Diaphragm spring brake chamber (27-27) HD95149340002 chamber bracket
SZ905000742 膜片彈簧制動氣室（27-27）
濟南向前汽車配件有限公司
8
濟南向前汽車配件有限公司
微信號：18660103049
 新聞中心產品分類
站內搜索 榮譽資質友情鏈接 |
您當前的位置：首頁 » 供應產品 » SZ905000742 膜片彈簧制動氣室（27-27）
SZ905000742 膜片彈簧制動氣室（27-27）
詳細信息
Parking brake chamber is a brake device with spring energy storage and air release. The charging pressure enters the pressure chamber from 12 ports and produces the force acting on the piston. When the pressure is greater than 0.65Mpa, the force acting on the piston is greater than the pre-tightening force of the spring. The piston goes up to the limit and the brake is removed. If the air in the pressure chamber is completely emptied, the spring pushes the piston down and pushes the push rod of the main brake to generate braking, and the braking strength is related to the spring pretightening force. When the pressure of the pressure chamber is lower than 0.65MPa, the braking force produced by the chamber is inversely proportional to the pressure value, so emergency braking can be implemented.
SZ905000742 Diaphragm spring brake chamber (27-27) HD95149340002 chamber bracket
|
||||||||||||||||||||||||||||||||||||
